- Size: 13.9m3
- Place of Origin: Henan, China
- Brand Name: SINOMACH
- Model Number: YZC6B
- Weight: 6000.000 kg

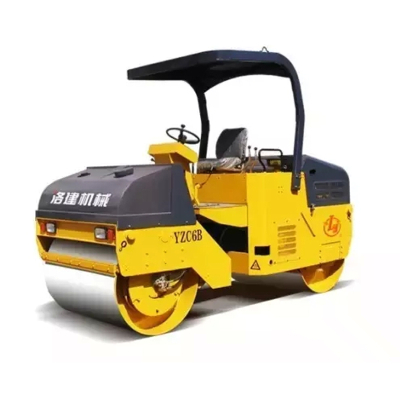

Main Features of SINOMACH LUOYANG YZC6B Double Drum Vibratory Roller
1. Reliable and powerful ZN490Q diesel engine.
2. The rear-drum drive with side gear transmission at two-gear travel speed.
3. Hydrostatic vibration with large vibrating centrifugal force.
4. The front and rear frame articulated and hydraulic power steering.
Specifications of SINOMACH LUOYANG YZC6B Double Drum Vibratory Roller
Model |
| YZC6B |
Operating mass | kg | 6000 |
Static linear load | N/cm | 288 |
Vibration amplitude | mm | 0.5 |
Vibration frequency | Hz | 50 |
Centrifugal force | kN | 60 |
Travel speed | KM/H | 7 |
Drum width | mm | 1250 |
Drum diameter | mm | 950 |
Grade ability | % | 20 |
Turning radius | mm | 6000 |
Ground clearance | mm | 386 |
Wheelbase | mm | 2479 |
Diesel engine model |
| ZN490Q |
Diesel engine power | kw | 33.5 |
Overall dimensions | mm | 3460×1480×2730 |
Detail Introduction of SINOMACH LUOYANG YZC6B Double Drum Vibratory Roller
Our mechanical vibrating double drum road rollers are equipped with diesel engines from reliable suppliers, such as Dongfeng Cummins and Chaochai. These engines can
provide sufficient power for our construction equipment to work effectively in harsh environment. Our tandem road roller uses an automatic speed control system that can preset the equipment operating speed and vibration interval, thereby maintaining uniform speed and consistent vibration interval to achieve better compaction effect.
As operator visibility greatly affects efficiency and safety, our mechanical vibrating double drum road rollers adopt a spacious work platform design that allows operator to flexibly adjust operating position to maximize comfort and field of vision. In addition, the built-in water tank also helps keep the operator's field of vision unobstructed. The sprinkler system with triple water filtration function effectively reduces equipment shutdown due to blockage. Moreover, the diesel engine is located in the rear of our road roller, away from the operating platform, which greatly facilitates routine maintenance.
These mechanical vibrating double drum road rollers are small size tandem vibratory rollers mainly used for road repair operation and compaction of highway shoulder,
sidewalk, stadium and lawn. In addition, they are also suitable for compaction of narrow areas as pipeline channel and drainage trench.
Our vibrating double drum road roller offers many advantages. Power steering helps reduce drivers' effort of steering the vehicle. Made using Japanese technology, the
gearbox allows easy gearshift. In addition, three speed ranges allow for flexible use on all applications and better compaction effect.
These mechanical vibrating double drum road rollers are small size tandem vibratory rollers mainly used for road repair operation and compaction of highway shoulder,
sidewalk, stadium and lawn. In addition, they are also suitable for compaction of narrow areas as pipeline channel and drainage trench.
With compact structure and small size, our YZC mechanical vibrating double drum road roller is especially suitable for operating in confined areas. The construction equipment is equipped with Changchai diesel engine, which offers high power reserve coefficient, reliable performance, low fuel consumption and low maintenance. Mechanical travel drive, hydraulic vibration and articulated steering combine to ensure convenient, flexible operations. The front and rear drums of our road roller are both fitted with scrapers and sprinkling devices so as to improve the quality of construction. To better suit customers'requirements, our roller compactor is provided with a canopy mainly made from umbrella fabric or fiber reinforced plastic. Platform trailer is also optional.
- Size: 13.9m3
- Place of Origin: Henan, China
- Brand Name: SINOMACH
- Model Number: YZC6B
- Weight: 6000.000 kg
